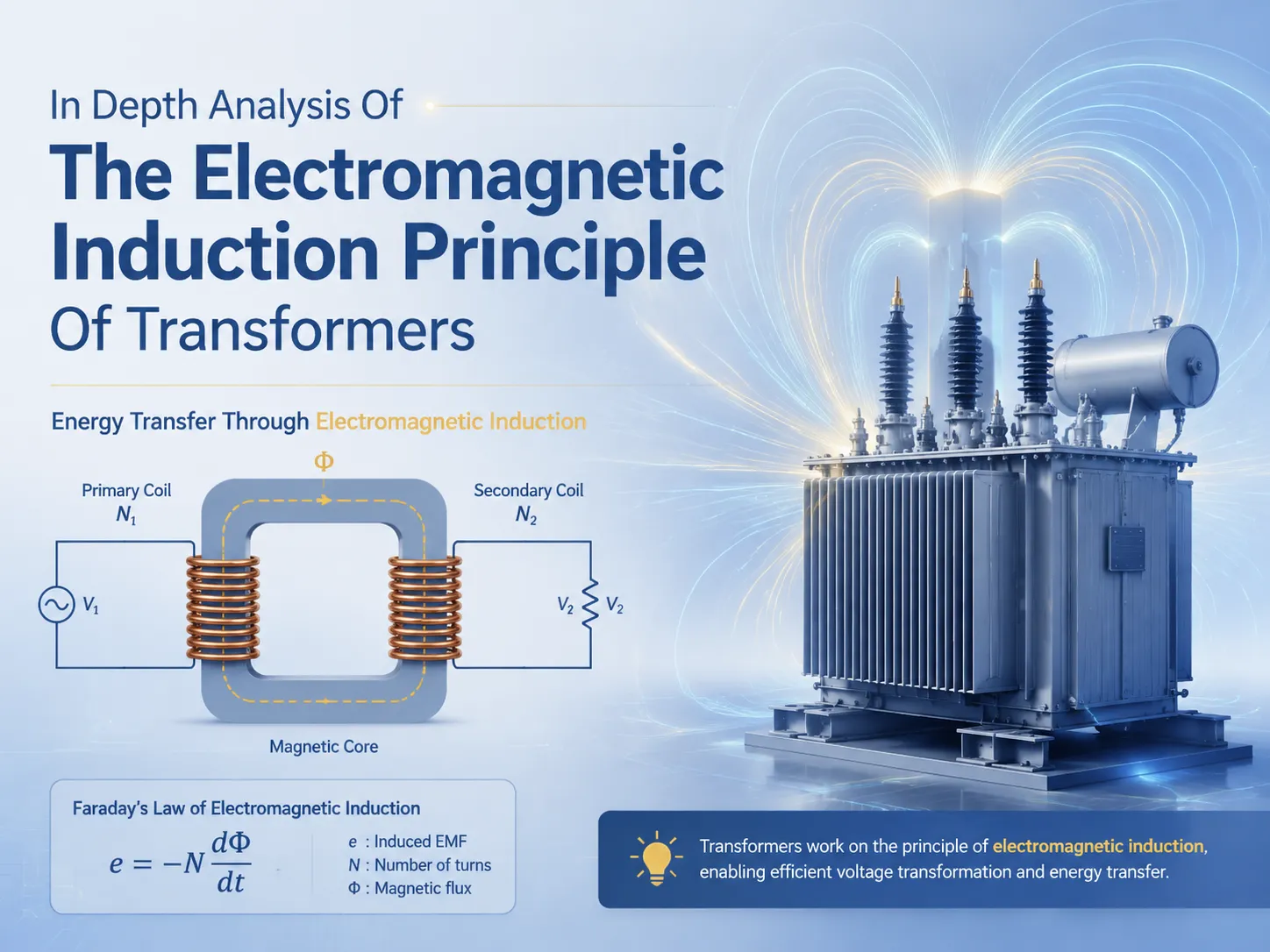

In-depth Analysis of the Electromagnetic Induction Principle of Transformers

In modern power systems, transformers play a pivotal role as they can achieve voltage transformation to meet the requirements of power transmission and distribution in different scenarios. Behind all these remarkable functions lies the electromagnetic induction principle, which shines like a brilliant pearl and illuminates the mysteries of how transformers work.

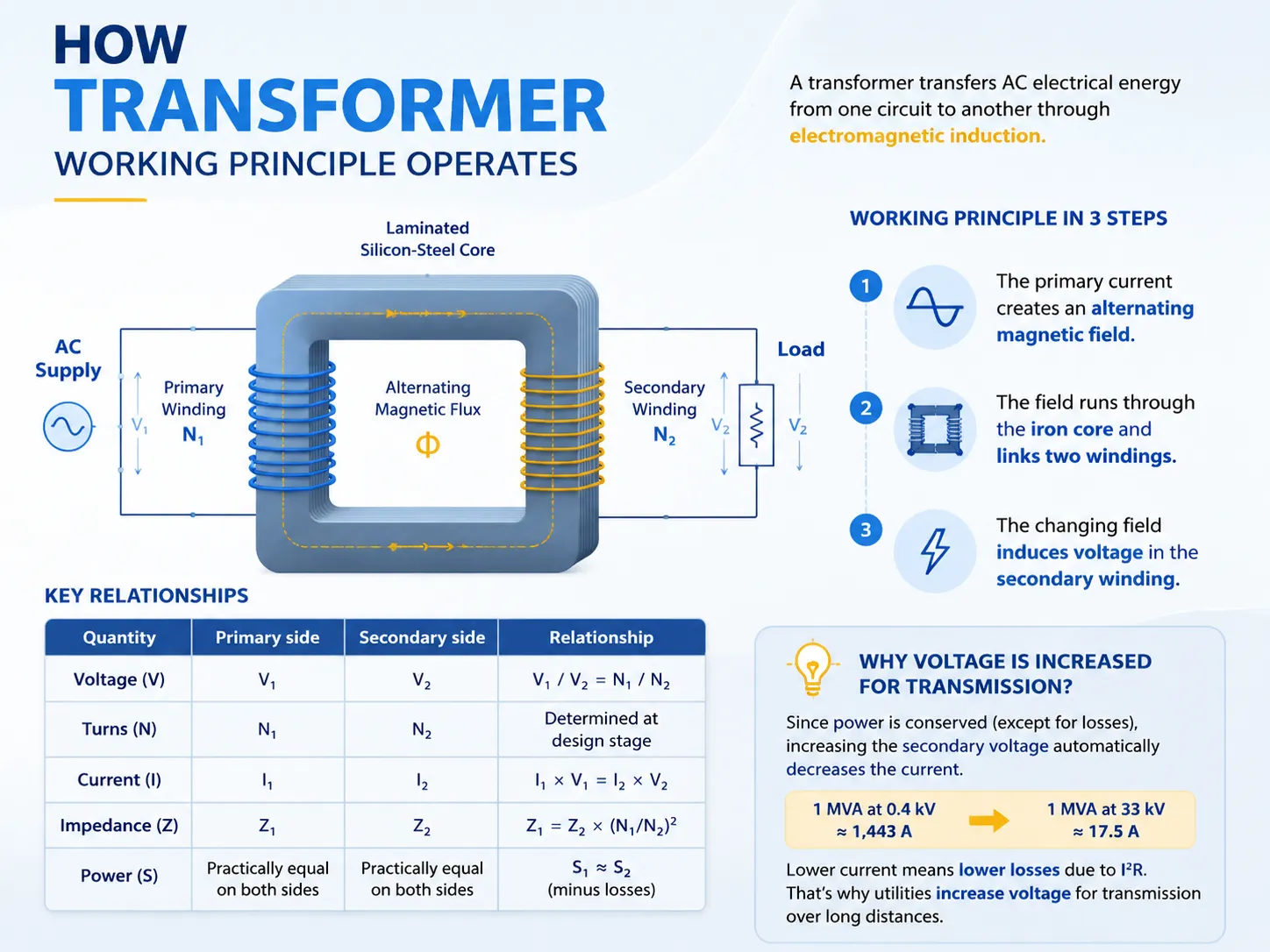

A transformer mainly consists of an iron core and the primary winding and secondary winding wound around the iron core. When the primary winding is connected to an alternating current (AC) power source, the alternating current starts flowing vigorously in the primary winding, just like an orderly marching army of electrons. This alternating current will induce an alternating magnetic flux in the iron core, much like dropping a stone into a calm lake and creating ripples that keep changing continuously. According to the law of electromagnetic induction, a changing magnetic field can generate an electric field. Therefore, this alternating magnetic flux, like an invisible hand, generates an induced electromotive force in the secondary winding when passing through it.

From the perspective of formula derivation, let the number of turns of the primary winding be , the number of turns of the secondary winding be , the electromotive force of the primary winding be , and the electromotive force of the secondary winding be . According to Faraday's law of electromagnetic induction, we can obtain that for the primary winding , and for the secondary winding . From this, the transformer voltage transformation formula  can be derived. Under ideal conditions, when ignoring the tiny influences such as the voltage drop across the resistance of the primary winding and leakage magnetic flux, the voltage of the primary winding  and the voltage of the secondary winding  satisfy the relationship . This simple yet powerful formula reveals the close connection between the voltage of the transformer and the number of turns, like a magical key opening the door to voltage transformation.

The variation law of magnetic flux is just like a periodic dance. Since the current of the AC power source connected to the primary winding jumps cheerfully on the time axis, rising and falling like a sine wave, the magnetic flux follows suit. During one cycle, it gracefully slides from the positive peak to zero, then turns around and rushes to the negative maximum value, and then slowly returns to zero, repeating this process continuously.

In practical application scenarios, the electromagnetic induction principle of transformers shows its great capabilities. During the long journey of power transmission, the voltage of the electrical energy generated by power plants is relatively low. If it is directly transmitted, the large current will cause a significant amount of power loss due to the resistance of the transmission lines. At this time, the step-up transformer makes its appearance. With an appropriate turns ratio, it can greatly increase the voltage, just like equipping the electrical energy with a powerful engine, allowing it to run efficiently in high-voltage lines with a smaller current and reducing losses. And at the end of the power distribution network where the electrical energy is about to enter thousands of households, the step-down transformer gently converts the high-voltage electricity into low-voltage electricity suitable for household and factory use, ensuring that electrical equipment can operate safely and stably. In the small world of electronic equipment, such as mobile phone chargers and computer power adapters, transformers also rely on the electromagnetic induction principle to skillfully convert the mains voltage into the precise voltage values required by the equipment, providing just the right power source for the normal operation of electronic equipment.

In conclusion, the electromagnetic induction principle of transformers is like a solid bridge connecting the worlds with different voltage requirements. It demonstrates its irreplaceable importance in both the grand narrative of power systems and the microscopic world of electronic equipment, continuously promoting the vigorous development of modern power and electronic technologies and bringing light and power to human production and life.
