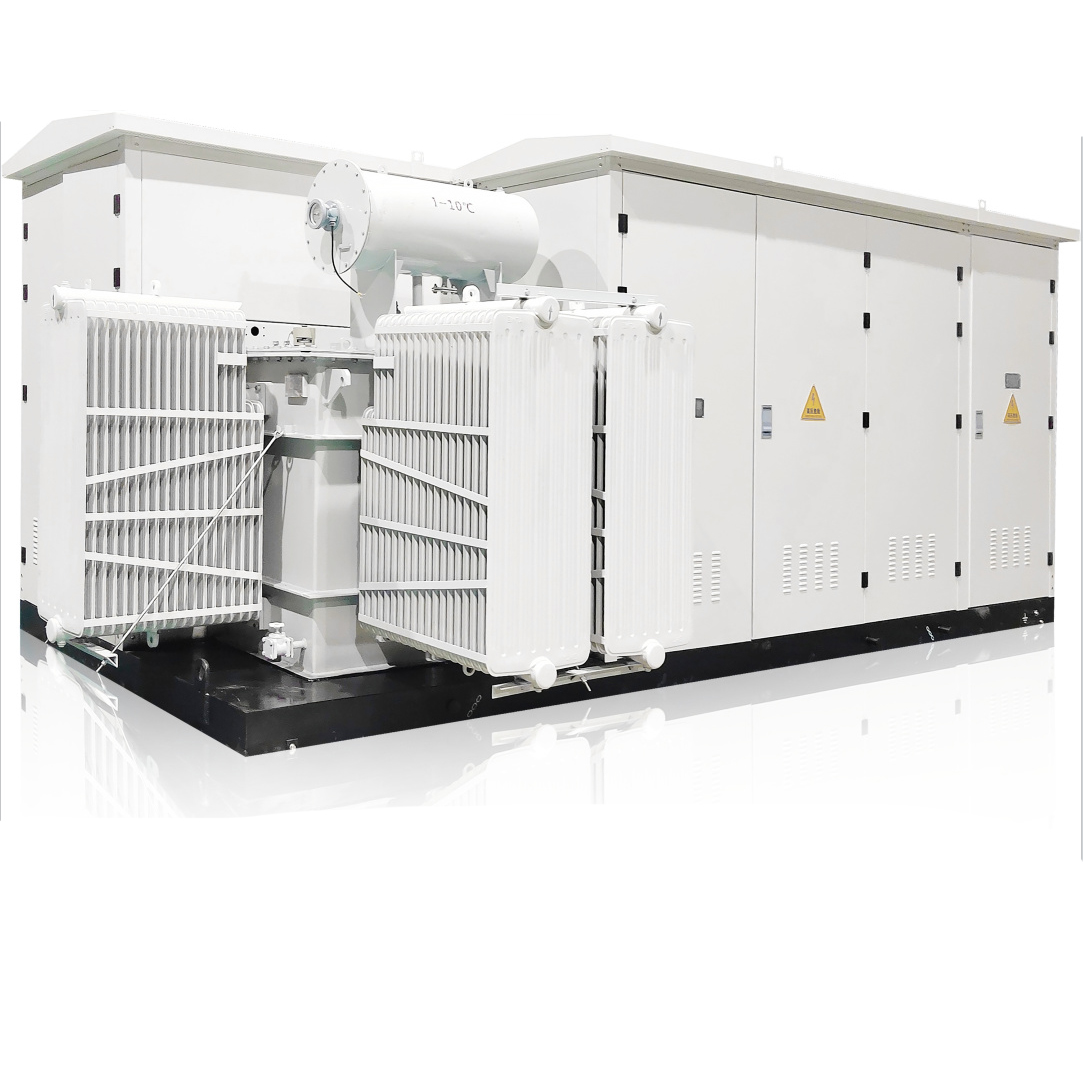

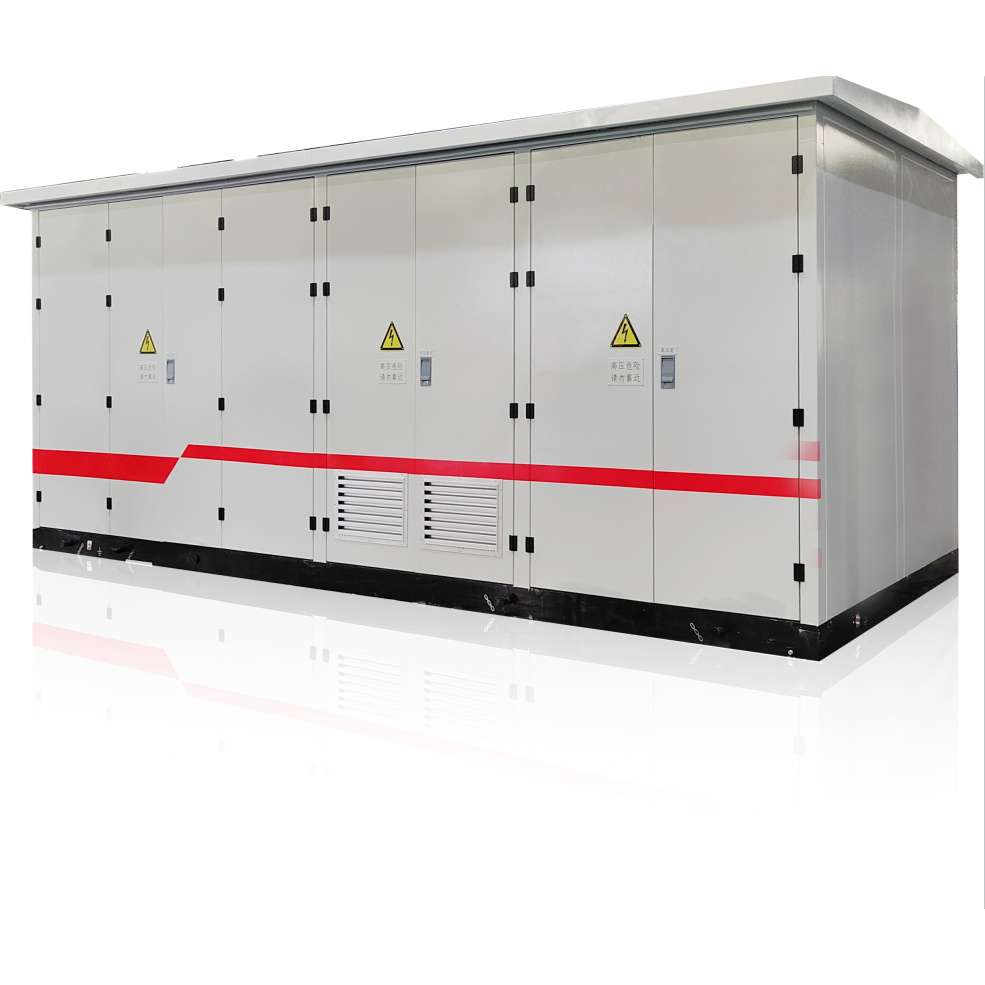

YBM-35/0.8 Prefabricated Photovoltaic Step up Substation
Product Application
The PV Power Generation Combined Substation is specifically tailored for use in solar power generation systems, where it plays a crucial role in elevating the voltage of electricity produced by PV stations. Its robust design and advanced features make it an ideal choice for integrating renewable energy sources into the power grid, ensuring seamless and efficient power distribution.
Product Advantages
● Enhanced Voltage Elevation: The substation excels in elevating the voltage of solar power from PV stations, enabling seamless integration into the power grid.
● Compact and Sealed Structure: With six compartments including transformer chamber, high-voltage chamber, low-voltage chamber, test chamber, switch operation chamber, and fuse chamber, the substation boasts a compact and sealed structure, ensuring superior performance and longevity.
● Advanced Sealing Technology: The use of vacuum oil injection during the encapsulation process eliminates moisture from the transformer, ensuring exceptional insulation performance and longevity.
● Comprehensive Protection: The high-voltage side features terminal load switches and fuse protection, while the high-voltage outgoing line adopts a high-voltage dry bushing-supported copper busbar structure, facilitating easy connection of multiple cable circuits.
Product Features
● Modular Design: The substation can be arranged in a “目” or “品” shape, offering flexibility in installation and space utilization.
● Superior Insulation Performance: The transformer oil, sealed within the tank using advanced technology, ensures outstanding insulation performance and longevity.
● Flexible Low-Voltage Outgoing Line: The low-voltage outgoing line can be directly laid or configured according to user requirements, providing versatility in application.
In conclusion, the PV Power Generation Combined Substation represents a breakthrough in power distribution technology, offering unparalleled efficiency, reliability, and performance. Its advanced features and robust design make it an indispensable component in the integration of solar power into the energy grid, contributing to a sustainable and greener future.
Installation conditions
Altitude:≤2000m;Environment temperature:-40℃-+45℃;
Environment humidity:Daily average ≤95%,monthly average≤90%;
Installation environment:No violent vibration and impact,and no fire,explosion risk place;
Seismic capacity:8 degrees,ground horizontal acceleration≤0.4g,ground vertical acceleration≤0.2g.
Note:If the operating environment exceeds the above range,please contact our company.
Transformer performance parameters
Rated voltage grade:35kV
Rated voltage on low voltage side:0.315kV(0.27kV、0.48kV)
Rated capacity:500kVA—1600kVA
Rated frequency:50Hz
Rated short-time power frequency withstand voltage (low-voltage side):5kV Rated short-time power frequency withstand voltage (high-voltage side):85kV Rated lightning shock with stand voltage(full wave):200kV
Protection grade:Tank IP68,high and low voltage chamber IP44,IP54
Ordering instructions
The following information shall be provided when ordering.:
Primary system diagram scheme and its parameter requirements;Installation layout; Other special requirements that are inconsistent with the normal use of the product.
Model and meaning
