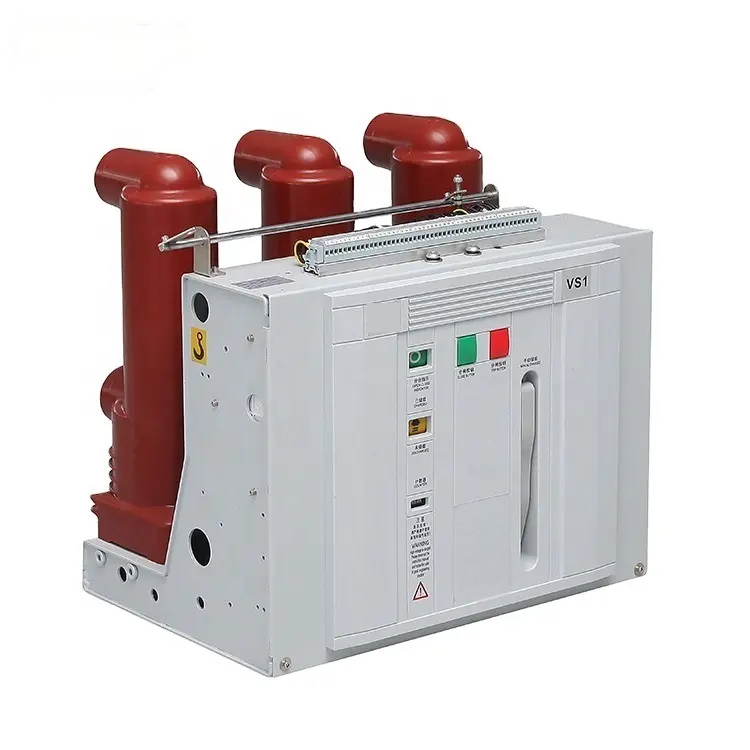

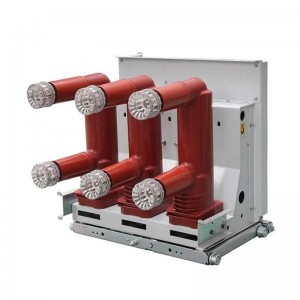

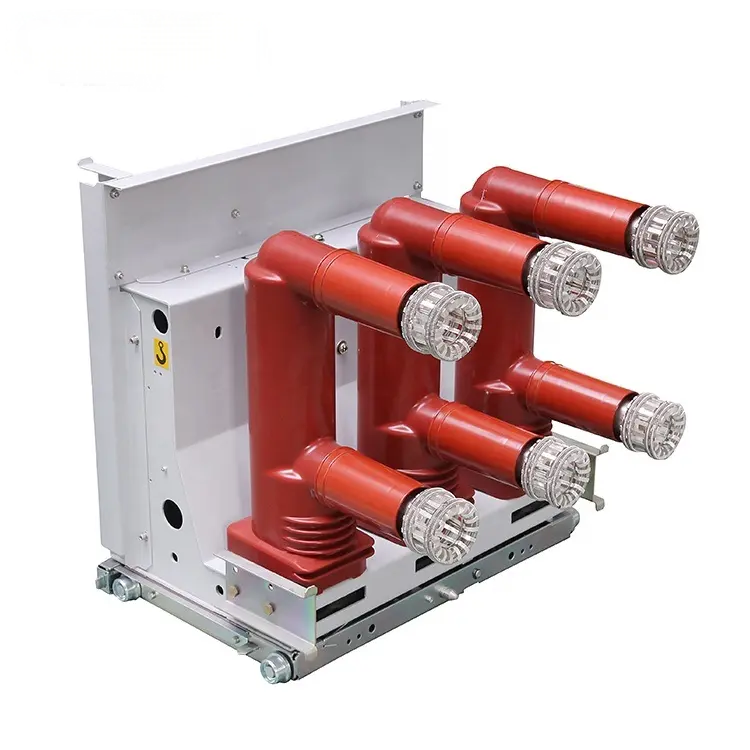

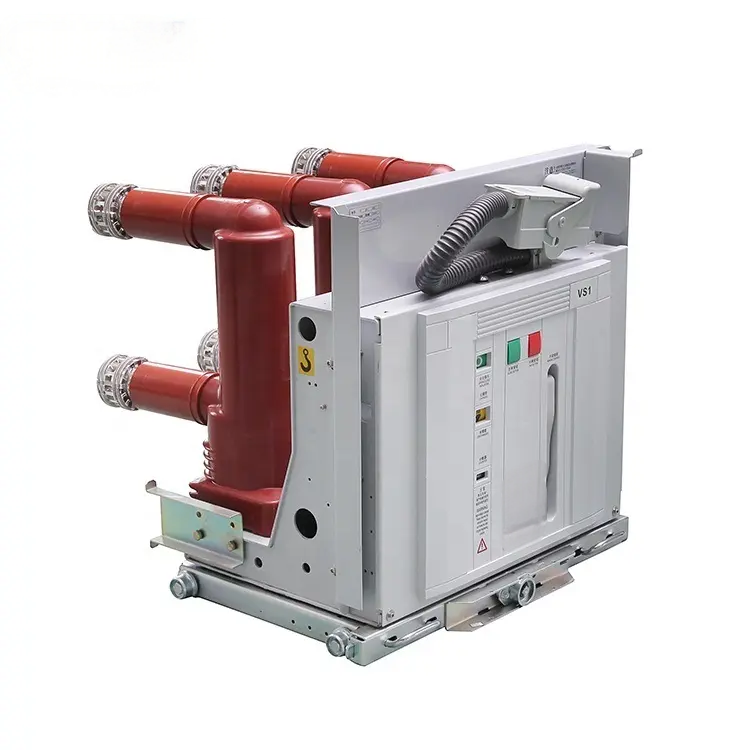

Vacuum circuit breaker for switchgear--Indoor Electrical 50Hz VCB VS1 Vacuum circuit breaker for switchgear

Operating conditions

1. The ambient temperature is not higher than +40°C and not lower than -15°C (storage and transportation at -30°C are allowed);
2. The altitude is not higher than 1000m;
3. Relative temperature: the daily average is not more than 95%, and the monthly average The value is not more than 90%, the daily average value of saturated vapor pressure is not more than 2.2×10-’MPa, and the monthly average value is not more than 1.8×10MPa;
4. The seismic intensity does not exceed 8 degrees;
5. There is no fire, explosion hazard, serious pollution, Places subject to chemical corrosion and severe vibration.

vacuum circuit breaker is a type of circuit breaker that uses vacuum interrupters to extinguish an electrical arc. It is commonly used in medium to high voltage applications where high currents are involved.

The basic construction of a vacuum circuit breaker consists of fixed and moving contacts, a vacuum interrupter, and a spring operating mechanism. When the circuit breaker is closed, the contacts are pressed together, allowing the electrical current to flow. When the circuit breaker is opened, the contacts move apart, creating an electrical arc. The vacuum interrupter uses the vacuum inside the interrupter to extinguish the arc, preventing damage to the contacts and surrounding equipment.

Vacuum circuit breakers have several advantages over other types of circuit breakers, including high reliability, low maintenance, and fast interruption of short circuit currents. They are also more environmentally friendly than other types of circuit breakers, as they do not use any harmful gases or chemicals.

Vacuum circuit breakers are commonly used in power generation plants, transmission and distribution systems, and industrial applications.
