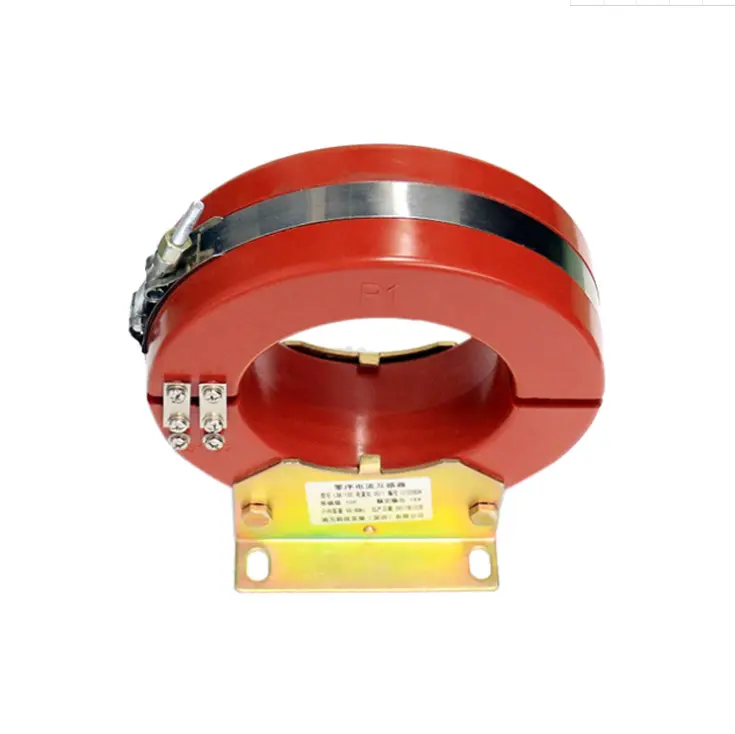

LXK opening and closing high voltage zero sequence current transformer-Y

Introduction

Parameters

• Rated voltage: It is suitable for high - voltage systems, usually with a rated voltage of 10kV, 35kV, or other voltage levels, depending on the specific application scenario. This indicates the voltage level of the power grid where the transformer is installed.
• Rated zero - sequence current: This parameter specifies the maximum zero - sequence current that the transformer can measure accurately. Common values may include 100A, 200A, 500A, etc. It determines the measurement range of the transformer for zero - sequence current.
• Accuracy class: The accuracy class of the LXK transformer is typically 5P or 10P. These accuracy classes are suitable for protection - related applications, ensuring that the transformer can provide reliable current signals for protection relays to operate correctly.
• Rated burden: The rated burden of the transformer represents the maximum load that the secondary winding can carry. It is usually expressed in VA (volt - amperes). Common values are 10VA, 15VA, 20VA, etc. A proper selection of the rated burden is necessary to ensure the accuracy and stability of the transformer's operation.
• Insulation level: The insulation level of the LXK transformer is designed to withstand the high - voltage environment of the power grid. It has appropriate insulation capabilities to prevent electrical breakdown and ensure the safety of the transformer during operation. The insulation level is specified according to relevant standards, such as having a certain withstand voltage value for the primary winding to ground and between windings.

Characteristics

• High sensitivity to zero - sequence current: The LXK transformer is specifically designed to be highly sensitive to zero - sequence current. It can accurately detect and measure even small - magnitude zero - sequence currents, which is crucial for early detection of ground faults and other abnormal conditions in the power system.
• Good electromagnetic compatibility: It has excellent electromagnetic compatibility performance, which means it can operate stably in the complex electromagnetic environment of the power grid without being affected by external electromagnetic interference. At the same time, it also minimizes the electromagnetic interference it generates to other equipment.
• Reliable insulation performance: The transformer is equipped with high - quality insulation materials and structures to ensure reliable insulation performance. This helps to prevent electrical leakage and breakdown, ensuring the safe operation of the transformer in high - voltage environments.
• Easy installation and maintenance: The opening and closing structure of the LXK transformer makes it easy to install and maintain. It can be conveniently installed on the busbar or cable without the need for complex disassembly and installation processes. This saves installation time and labor costs and facilitates regular maintenance and inspection.
• Wide range of applications: It can be widely used in various high - voltage power distribution systems, such as substations, power plants, and industrial power supply systems. It is suitable for different types of electrical equipment, including transformers, switchgear, and cables, to provide zero - sequence current protection and monitoring.
