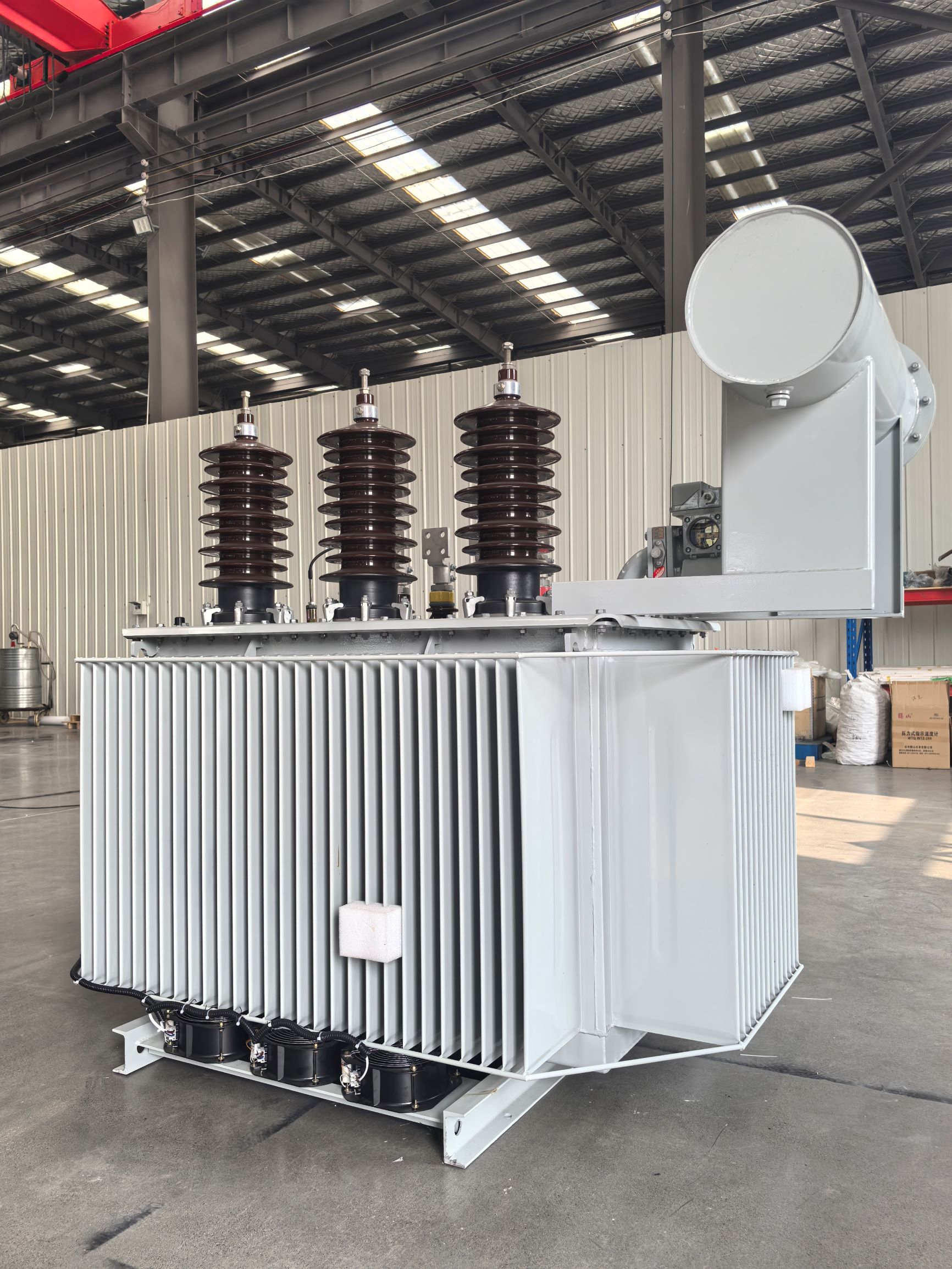

In the power system, transformers play a vital role, and the 35KV oil - immersed transformer (model: S11 - 1000/35/0.4) stands out with its outstanding performance and reliable quality.
The design of this 35KV oil - immersed transformer is based on mature power transformer technology. Firstly, its rated voltage is 35KV on the high - voltage side and 0.4KV on the low - voltage side, which can meet the energy conversion requirements between different voltage - level power grids. The number 1000 indicates that its capacity is 1000KVA, enabling it to provide stable power transmission for relatively large - scale power loads.

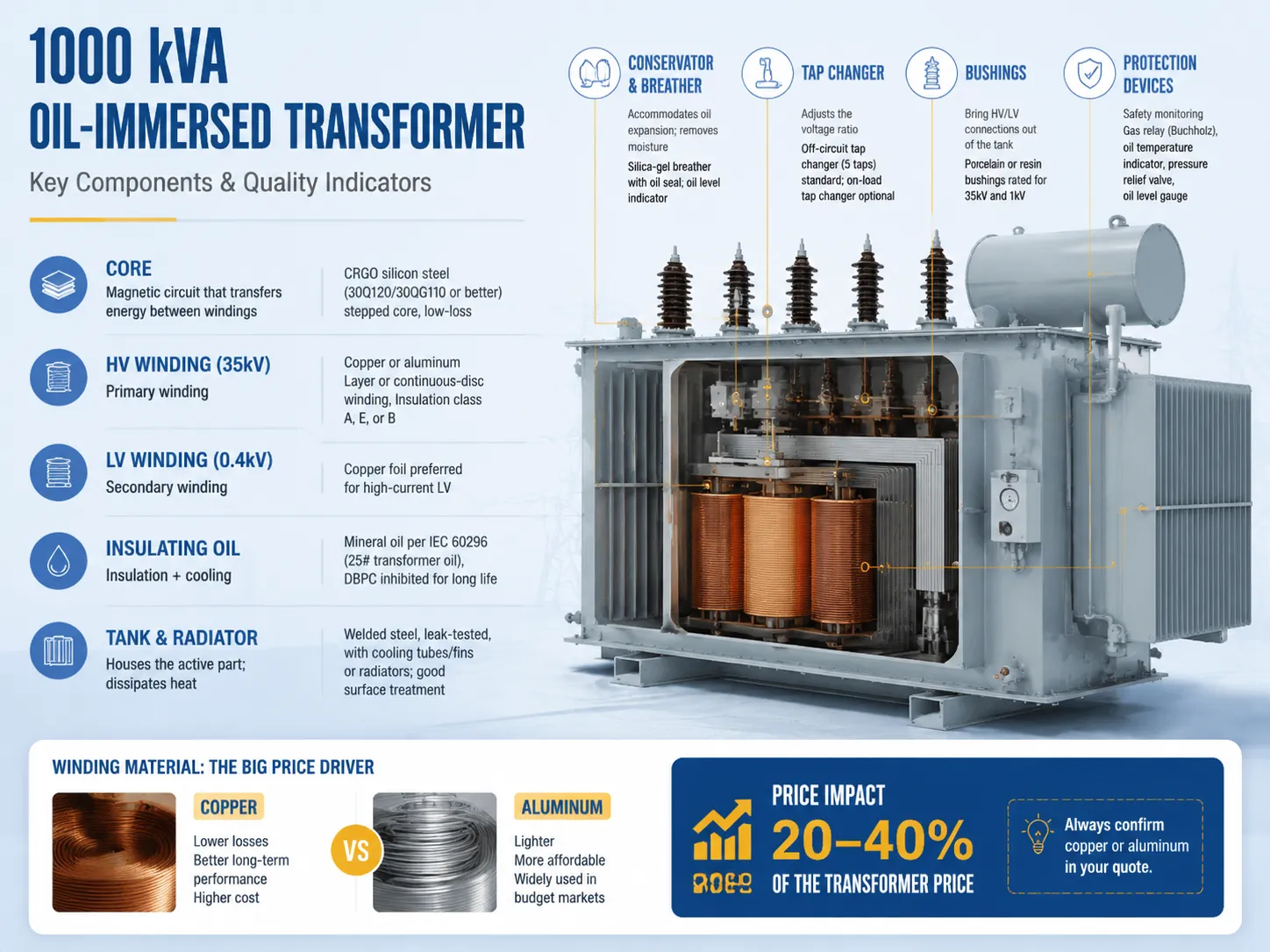

From the structural perspective, it adopts an
oil - immersed design. Transformer oil, as an insulating and cooling medium, has good insulation performance and heat conduction ability. This not only effectively prevents electrical breakdown and ensures the safe operation of the transformer but also can timely take away the heat generated during the operation of the transformer to ensure the stable working temperature of the transformer under the rated load.
In terms of performance, the transformer of the S11 - 1000/35/0.4 model has the characteristic of low loss. Thanks to the advanced core design and the selection of winding materials, it can effectively reduce the core loss and winding resistance loss, improve the conversion efficiency of electrical energy, reduce energy waste, and save operating costs for users.
In terms of safety protection, this transformer is equipped with a complete set of protection devices. For example, over - current protection and over - voltage protection are set up, which can cut off the circuit in time when abnormal situations occur during the operation of the transformer, protect the transformer and related equipment from damage, and ensure the safe and stable operation of the power grid.
In addition, during the manufacturing process, this
transformer strictly follows the relevant national standards and industry specifications. From the selection of raw materials to every link of production and processing, it has undergone strict quality control and testing to ensure reliable product quality and stable performance.
Whether in the industrial production field or in the urban and rural distribution networks, the
35KV oil - immersed transformer (S11 - 1000/35/0.4) can provide users with efficient and reliable power transformation services and is an indispensable important equipment in the power system.
