Transformer Manufacturing: Where Engineering Excellence Meets Reliability

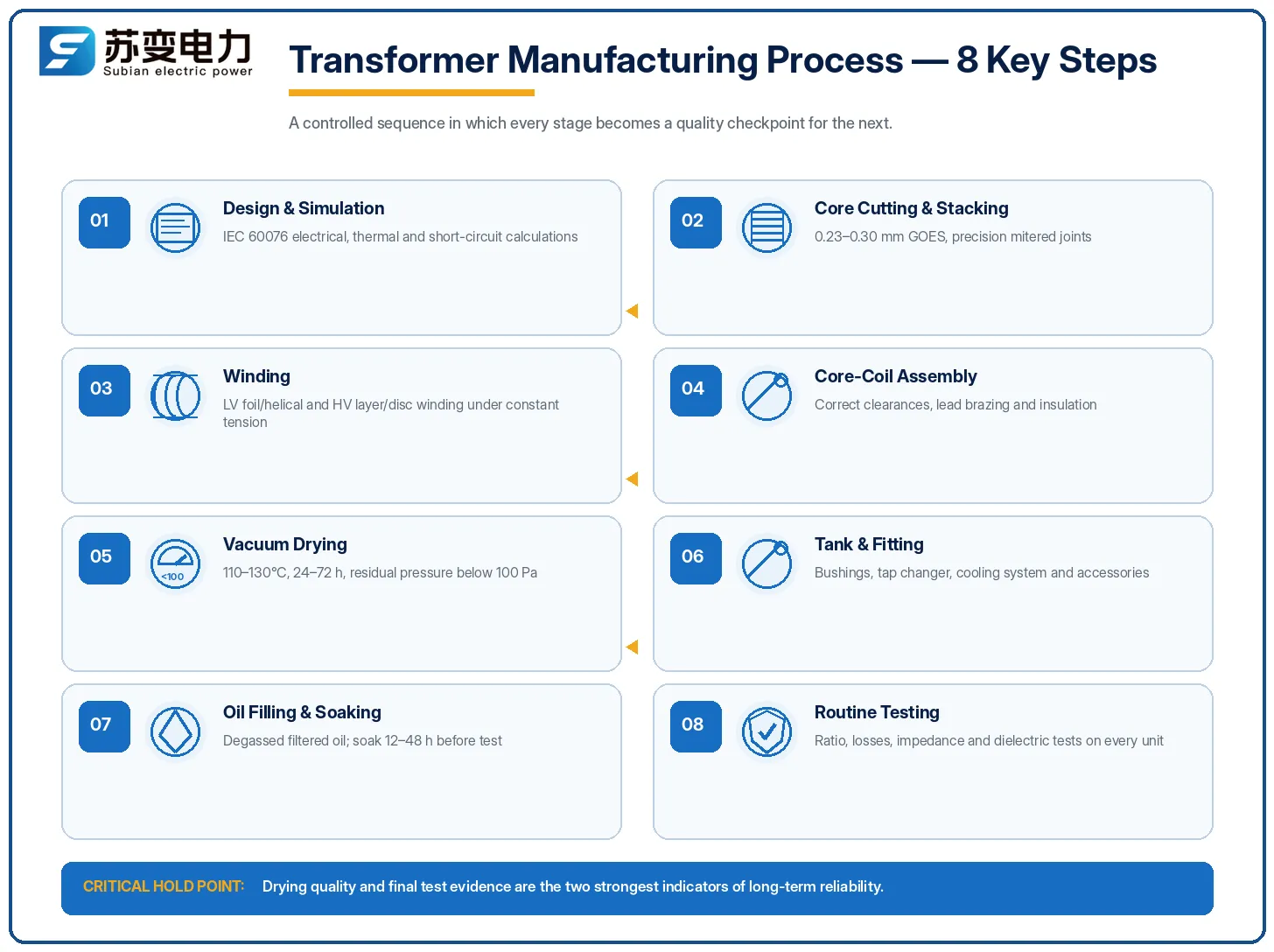

Part 1: The Heart of the Matter: Core and Coil Construction

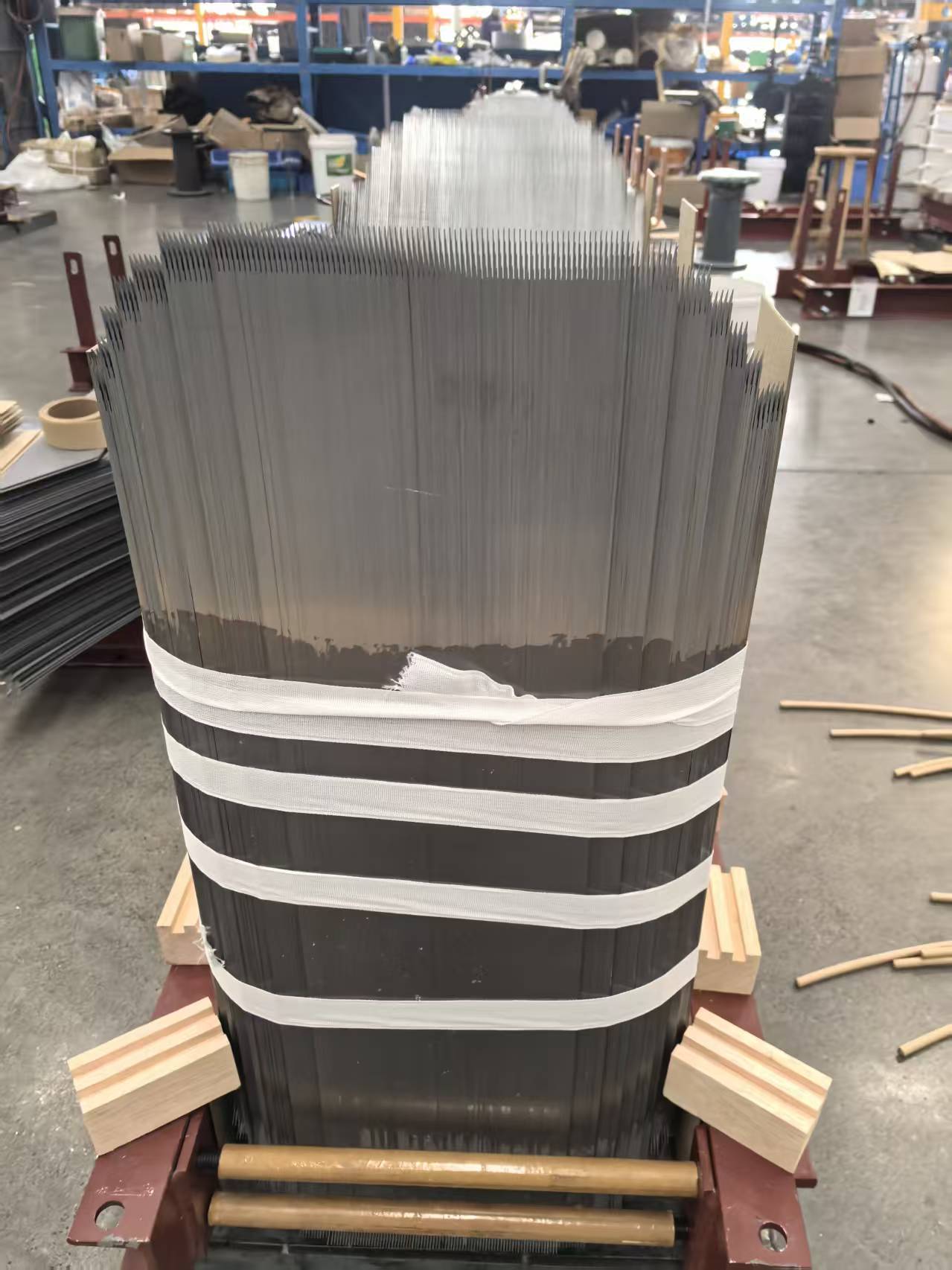

The journey to a high-performance transformer begins with its core and windings. The core, typically made from high-grade, grain-oriented silicon steel, is precisely stacked and laminated to minimize eddy current losses and magnetic hum. This process requires laser-sharp cutting and layering to ensure a tight, uniform structure that directs magnetic flux efficiently.

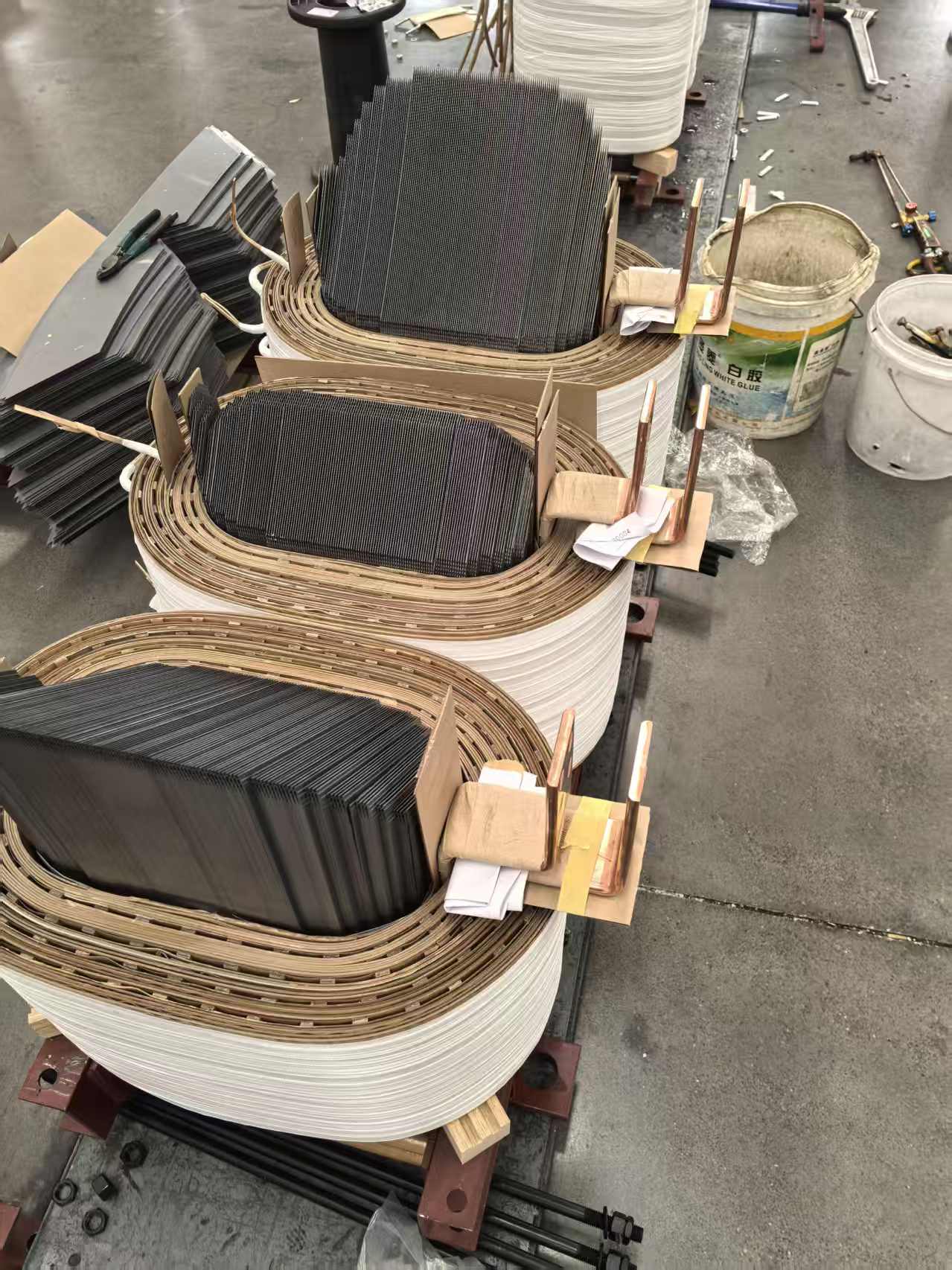

Equally crucial are the windings. For oil-immersed units, oxygen-free copper or aluminum conductors are carefully wound, insulated with high-temperature paper or polymer films, and thermally cured. This stage demands absolute precision, as even minor imperfections can lead to hotspots or short circuits. Leading European manufacturers like Hitachi Energy (formerly ABB's power grid division) and Siemens excel here, utilizing automated winding machines and vacuum pressure impregnation (VPI) systems to achieve exceptional consistency and dielectric strength, setting the benchmark for reliability in utilities and heavy industry.

Part 2: Assembly, Encapsulation, and Protection
Once the core and coils are ready, they are assembled into the tank or enclosure. For dry-type transformers, this often involves encapsulation in epoxy resin under vacuum. This process locks the windings in place, creating a solid, monolithic block that is resistant to moisture, dust, and corrosive atmospheres—ideal for indoor installations like skyscrapers or data centers.

For oil-immersed transformers, the assembled core-coil unit is lowered into a robust, welded tank. The unit then undergoes a rigorous drying and degassing process before being filled with purified, high-dielectric insulating oil. This oil acts as both an insulator and a coolant. Brands like EFACEC (Portugal) and SGB-SMIT (Germany) are renowned for their expertise in this area, producing units with superior thermal management and long service life for renewable energy plants and industrial applications.

Part 3: The Final Guarantee: Testing and Quality Assurance

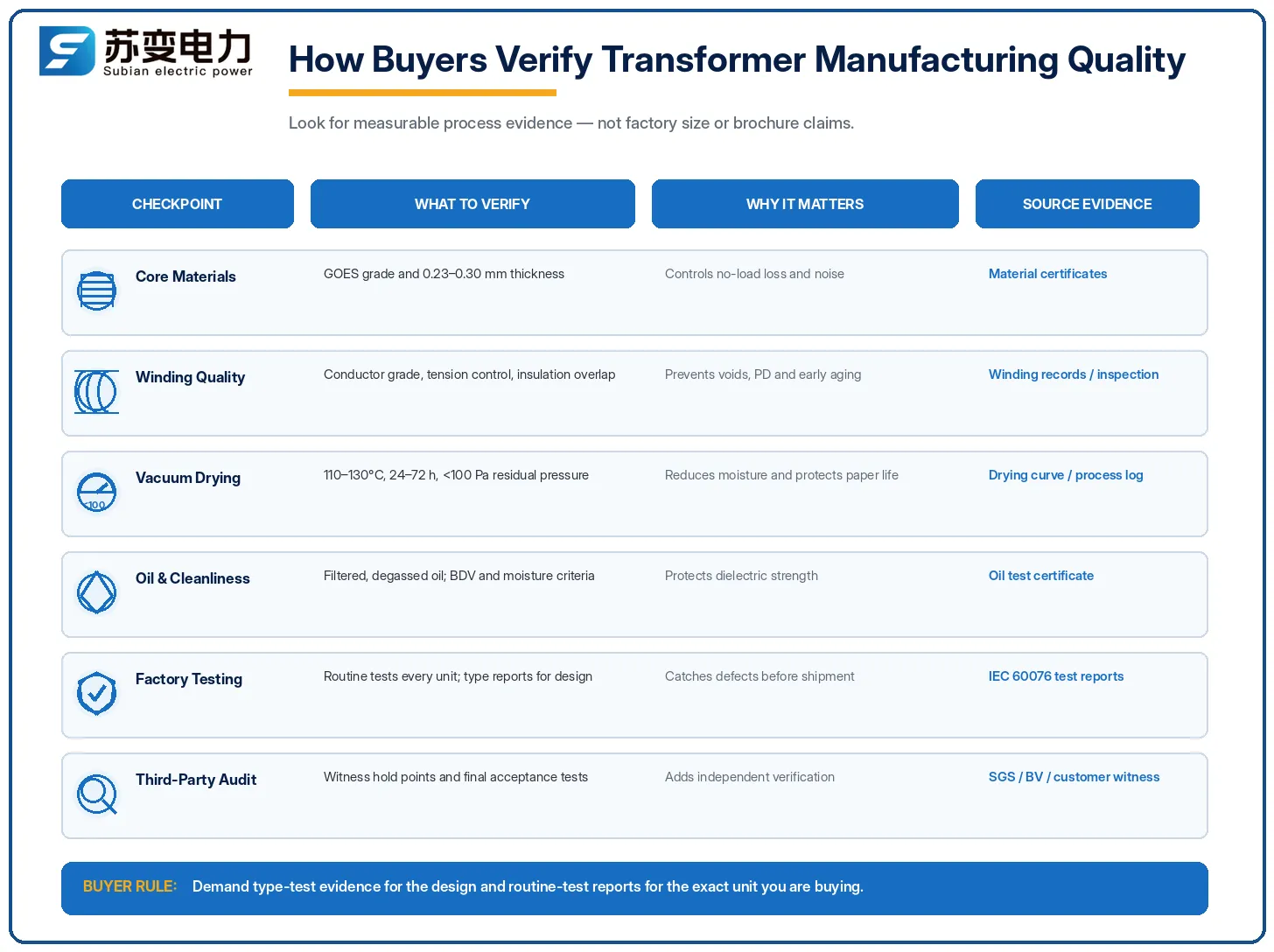

A transformer is only as good as its test report. Comprehensive testing is non-negotiable. This includes routine tests like turns ratio and resistance measurements, and type tests such as lightning impulse and short-circuit withstand tests that simulate decades of stress in minutes. Advanced facilities use partial discharge (PD) detection to identify any microscopic insulation flaws that could lead to future failure.

This relentless focus on verification is what separates premium transformers from the rest. It ensures compliance with IEC, IEEE, and other regional standards, giving engineers and project managers the confidence that the equipment will perform as specified for 25 years or more.

Why Subian Power's Manufacturing Process Delivers Peace of Mind
At Subian Power, we blend time-tested craftsmanship with modern precision. Our manufacturing philosophy is built on the same core principles that define European excellence: rigorous material selection, controlled processes, and exhaustive testing. We hold all major international certifications, ensuring every unit—whether a compact dry-type or a large power transformer—meets the highest benchmarks.

We add a crucial layer of value through supply chain efficiency and scalability. Our global manufacturing network allows for cost-effective bulk procurement without compromising the critical steps outlined above. For contractors and utilities managing large or international projects, this means accessing reliably manufactured, certified transformers with simplified logistics and competitive pricing. Partner with Subian Power for transformers where quality is engineered in, from the first sheet of steel to the final test report.
