Single Phase Pole Mounted Power Transformer - Reliable & Efficient

Single-phase oil-immersed transformers are designed to provide exceptional performance and reliability. It is designed to efficiently convert high-voltage electricity into low-voltage electricity, making it an important part of the power distribution system. The transformer can withstand the rigors of continuous operation, ensuring uninterrupted power supply to critical equipment and machinery

    Contact us
    Product Detail

    Product introduction

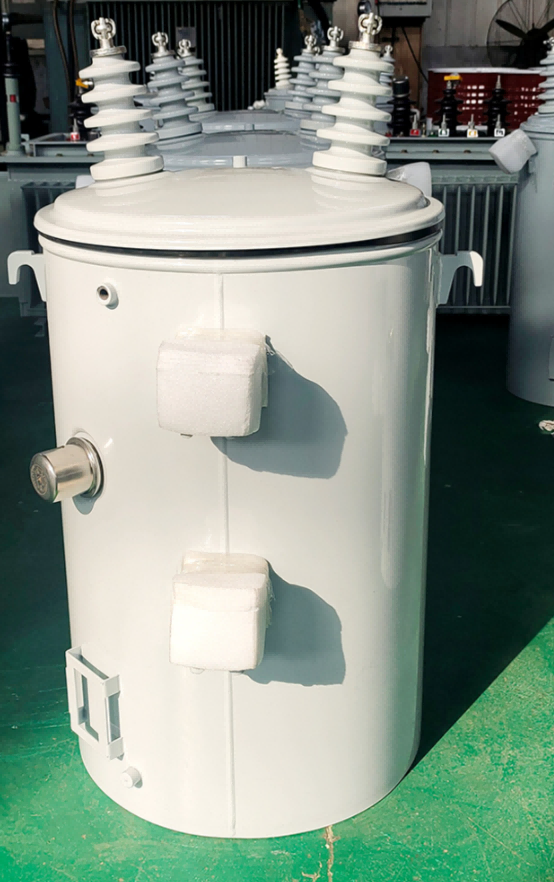

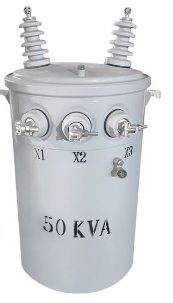

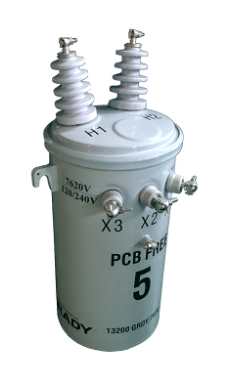

    The single - phase pole - mounted distribution transformer is a crucial device in the field of power distribution. It is usually installed on utility poles, and its compact and sturdy appearance allows it to adapt well to outdoor environments. The main function of this transformer is to convert higher voltages into a single - phase voltage of 220 volts, which is suitable for use in households and small commercial premises. It has a compact structure. The core is made by laminating high - quality silicon steel sheets, which can effectively reduce hysteresis and eddy - current losses, thus improving energy conversion efficiency. The windings are made of high - purity copper materials to ensure good electrical conductivity and durability.​
    In residential areas, it works silently to provide stable power supply to thousands of households. Whether it is to light up the lights at night or drive various household appliances, its reliable support is indispensable. In small commercial areas, such as convenience stores and barbershops, it also plays an essential role in ensuring the normal operation of in - store equipment. With its high - efficiency and reliable performance, the single - phase pole - mounted distribution transformer provides a continuous and stable power guarantee for people's daily lives and commercial activities.

    Main Features

    ● Type: Conventional or CSP type

    ● Suitable for both indoor or outdoor

    ● Ambient temp: -25℃-+40℃

    ● Winding temp rise : 55 ℃ or 65 ℃

    ● Core: CRGO or Amorphous Core

    ● Efficiency standard: DOE 2016 or NEMA TP1

    ● Winding material : CU or AL

    ● Frequency: 50HZ or 60HZ

    ● Capacity : 5kVA to 333kVA

    Technical parameters

    Table of Liquid Single phase pole mounted transformer (<150kV BIL) Temp rise 65℃5℃

    kVA

    Primary voltage

    Secondary
    voltage

    A
    mm

    B
    mm

    C
    mm

    Weight
    (kG)

    Efficiency %

    DOE2016

    NEMA TP1

    10

    4160

    7200
    7620
    12470
    13200
    13800
    24940
    19920

    120/240

    240/480
    277
    346
    600

    530

    600

    1060

    160

    98.70%

    98.40%

    15

    530

    600

    1060

    180

    98.82%

    98.60%

    25

    580

    660

    1080

    230

    98.95%

    98.70%

    37.5

    610

    690

    1090

    290

    99.05%

    98.80%

    50

    650

    700

    1100

    340

    99.11%

    98.90%

    75

    680

    750

    1250

    450

    99.19%

    99.00%

    100

    730

    800

    1250

    500

    99.25%

    99.00%

    167

    900

    850

    1300

    780

    99.33%

    99.10%

    250

    1200

    900

    1450

    1100

    99.39%

    99.20%

    333

    1350

    1200

    1500

    1300

    99.43%

    99.20%
